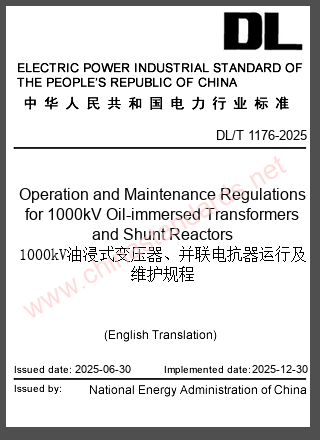

DL/T 1176-2025 in English

DL/T 1176-2025 Standard Revision Background and Technological Evolution

DL/T 1176-2025 "Operation and Maintenance Procedures for 1000kV Oil-Immersed Transformers and Shunt Reactors" is an important technical standard in the field of ultra-high voltage AC transmission and replaces the 2012 version. This revision fully takes into account the actual needs of the rapid development of my country's ultra-high voltage power grid, and combines the accumulated operating experience of 1000kV oil-immersed transformers and shunt reactors to systematically optimize and improve the technical content.

Comparative Analysis of Major Technical Changes

In-depth analysis of operation technical requirements

Temperature control standards

The standard clearly stipulates The operating temperature limits for 1000kV oil-immersed transformers and shunt reactors are: 85°C for the top oil of the main transformer, 95°C for the voltage-regulating compensating transformer and shunt reactor, and 100°C for the neutral reactor. These temperature limits are based on the thermal aging characteristics of the equipment's insulation materials to ensure long-term reliability. The standard requires that the main unit's heavy gas protection device trip, the main unit's light gas protection device trip, and the on-load tap changer's oil flow relay trip. For protective devices such as sudden pressure relays and pressure relief valves, the standard stipulates that signals should be activated. This configuration ensures rapid fault clearance in the event of an equipment fault while avoiding unnecessary tripping.

Inspection System Architecture and Implementation Key Points

Four-Level Inspection System

The standard establishes a four-level inspection system consisting of daily inspections, periodic inspections, special inspections, and pre-commissioning inspections. Daily inspections focus on operating parameters and status parameters, regular inspections are conducted at least monthly, special inspections target severe weather conditions and abnormal operating conditions, and pre-commissioning inspections ensure that the equipment is in good initial condition.

Technical Requirements for Intelligent Inspection

The newly added maintenance requirements for the intelligent inspection system reflect the standard's technological foresight. They require inspections of system image clarity and analysis result accuracy, ensuring camera lens cleanliness, flexible controls, and proper sensor operation. These requirements provide technical support for the intelligent operation and maintenance of 1000kV transformers.

Key technical requirements of maintenance standards

Special maintenance cycle and content

Maintenance items	Maintenance cycle	Technical requirements	Standard basis
Thermometer calibration	Combined with power outage	Comply with DL/T 1400.3 requirements	Article 6.2
Gas relay inspection	2-3 years	Internal structure and action reliability inspection	Article 6.7
